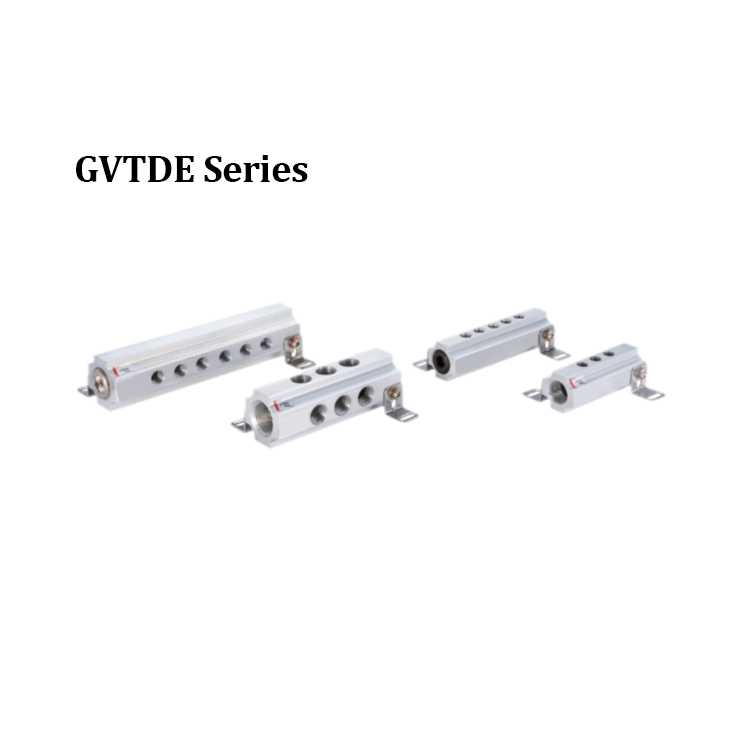

GVTDE--Flow divider manifold
Materials
- Fluororubber sealing elements
- Hard anodized inner wall gas path
- Anodized aluminum alloy manifold substrate
Implementation standards
- ISO 4414
- EN 61000-6-2/4
- EC 1935/2004
- 2014/30/EU + 2014/35/EU
- Sellingpoint
- Product Show
- 3D Preview
- Inquiry
- Related Products
SOVE
The manifold is optimized through multi-channel integrated design and performs well in complex fluid control systems. Its pressure-balanced structure not only achieves 0.1- 10MPa stepless flow distribution, but is also more suitable for hydraulic power units, pneumatic actuators, and cooling circulation loops, especially maintaining a flow stability of ±1.5% under ±50℃ thermal shock.
It is widely used in 🚗 ISO 10218 welding robot multi-valve group collaborative control in automobile manufacturing (response time <8ms), 🍶 FDA 21 CFR filling valve group precision metering in food packaging (accuracy ±0.1ml), and ⚕️ IEC 60601-2-12 ventilator air circuit safety regulation in medical equipment (leakage rate <0.05%), realizing cross-industry high-precision technology integration in the field of industrial control.
Description
- Modular design.
- Integrated exhaust muffler.
- With pressure testing port.
- OR=Oil Resistance
- PR=Pressure Resistance
- CR=Chemical Resistance
1. About 3D models and technical parameters:
"If you need to obtain, please contact us by email."
2. About price consultation:
"If you need to obtain, please get in touch with us. We will provide the most suitable quotation plan."
