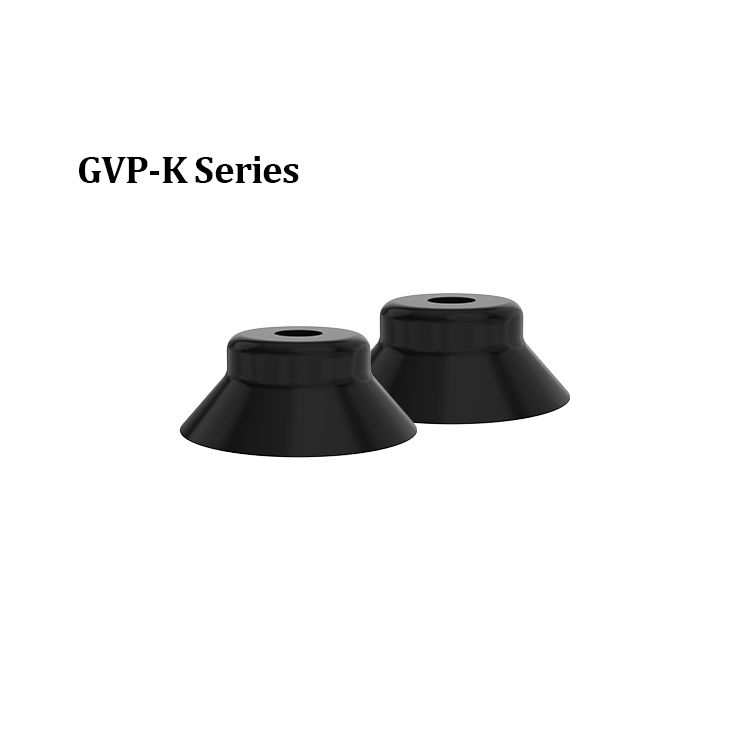

GVP-K--Flat suction cup

GVP-K--Flat suction cup

Materials

  • Nickel-plated brass bracket
  • High-performance polyurethane body material

Implementation standards

  • FDA 21 CFR 177.1680
  • IS0 4649
  • ISO 14644-1 Class 7
  • RoHS 2 & REACH
  • Sellingpoint
  • Product Show
  • 3D Preview
  • Inquiry
  • Related Products

SOVE

The flat suction cup has an ultra-thin and lightweight structure, which excels in the non-destructive handling of precision components. Its multi-chamber partitioned adsorption design not only achieves a 99.8% vacuum stability retention rate, but is also widely used in ultra-clean environments such as OLED screen transfer, micro-sensor assembly, and biochip packaging, and can maintain a ±0.05mm pick-and-place positioning accuracy on curved and irregular workpieces.

It is deeply integrated into the ultra-precision micro-manipulation system of 📱electronics manufacturing (positioning accuracy ±0.5μm | anti-static ESD <50V), the high-speed positioning production line of 🧃packaging industry (beat >1200 pieces/minute | alignment deviation ±0.05mm), and the flexible manufacturing unit of 📦light industry (changeover time <8min | load adaptation 0.5-50kg), achieving zero-error coordination of the core processes of the three major industries of electronics, packaging, and light industry.

Description

  • High-speed response.
  • Ultra-thin design.
  • Low residual adsorption.
  • AR = Abrasion Resistance
  • OR=Oil Resistance
  • IR=Impact Resistance

1. About 3D models and technical parameters:
"If you need to obtain, please contact us by email."

2. About price consultation:
"If you need to obtain, please contact us. We will provide the most suitable quotation plan."
