GUS0401A series of intelligent robotic arms made in China with higher cost performance
| Model | ltem | ARM | Wrist | ||||
| J1 | J2 | J3 | J4 | J5 | J6 | ||

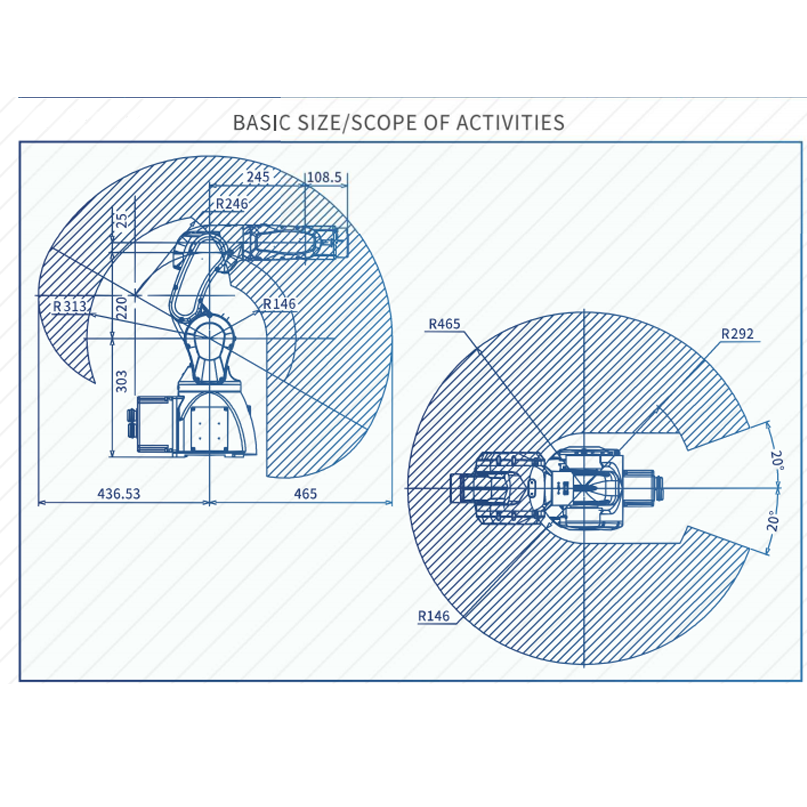

| GUS0401A | Arm Length | floor-2 axis range 302mm | 2-2 axis range 220mm | 3-5 axis range 245mm | 5-axis end range 108.5mm | ||
| Range | ±160° | -120°/+60° | -60°/180° | +180° | +110° | ±360° | |
| Max.Speed | 340°/s | 297°/s | 337°/s | 562°/s | 600°/s | 600°/s | |
- Product Showcase
- 3D Preview
- Description
- Inquiry
- Related Products
SOVE
This automated six-axis robot adopts an integrated design and is designed for micro and small parts operating environments. It is suitable for small parts assembly, classification, inspection, and other operations. The rated load is 1 kg, the arm span is 465 mm, and the base rotation + shoulder and elbow extension + wrist three-axis posture adjustment.
◆ Four major application scenarios
Intelligent manufacturing
Automobile welding (45 seconds/unit)
Chip mounting (0.01mm accuracy)
Heavy-duty palletizing (1.5 tons ±2mm)
Healthcare
Orthopedic surgery (＜0.3mm error)
Laboratory automation (±0.1μL pipetting)
Special operations
Nuclear power plant maintenance (10^5 Gy radiation resistance)
Deep-sea operations (6000 meters water depth)
Smart logistics
2400 pieces/hour sorting
AGV collaboration (±10ms synchronization)
◆ Key advantages
Spatial versatility: complex trajectory movement
Intelligent flexibility: 200+ tools can be replaced in 15 minutes
Safe and reliable: 8ms collision response
Energy-saving and efficient: direct drive motor saves 40% of electricity
1. About 3D models and technical parameters:
"If you need to obtain it, please contact us by email."
2. About price consultation:
"If you need to obtain, please get in touch with us. We will provide the most suitable quotation plan."
Description
- For small parts assembly, sorting, inspection, and other tasks.
- Rated load: 1KG.
- Arm span: 465mm
- Protection level: IP50, dustproof
- Accuracy: Repeat positioning accuracy ±0.06mm
