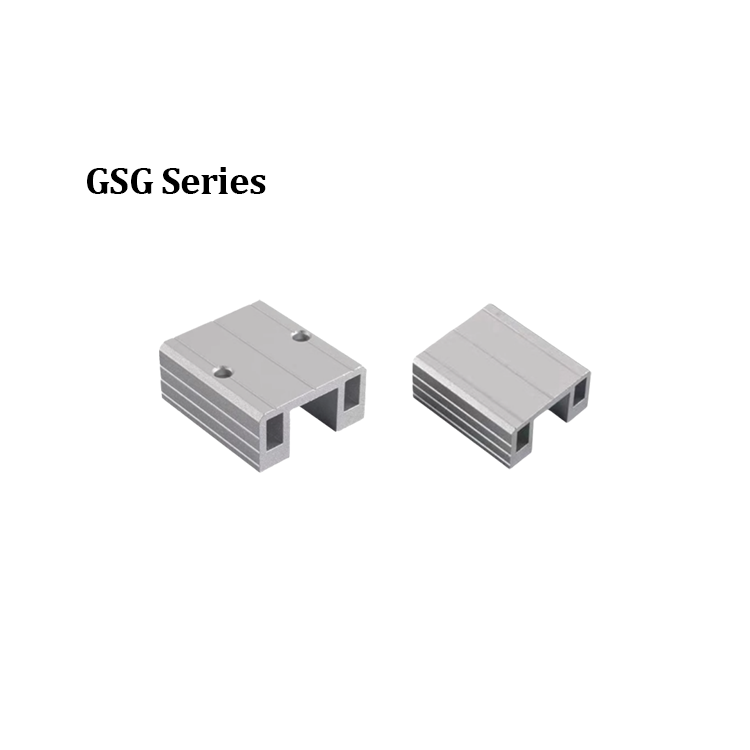

GSG--Single slot fixing block
Materials
- 6061-T6 aluminum alloy substrate
- Hard anodized surface treatment
Implementation standards
- ISO 68-1
- ASTM B221
- ISO 898-1
- CE 2014/68/EU
- Sellingpoint
- Product Show
- 3D Preview
- Inquiry
- Related Products
SOVE
The single-slot fixing block is optimized with a wedge-shaped locking structure and performs well in the modular assembly system. Its bidirectional clamping mechanism not only realizes the linear locking adjustment of 5-200Nm torque, but is also more suitable for linear guide mounting bases, conveyor belt support beams, and robot end tool quick-change interfaces, especially maintaining a mounting surface displacement control accuracy of ±0.03mm under a 15kN lateral impact load.
It is widely used in the quick-change interface system of 🤖 industrial robots (changing time ≤ 0.5s), the modular component positioning platform of 🏭 automated production lines (repeat accuracy ±0.02mm), and the micron-level fixture system of 📐 testing equipment (positioning accuracy ±1μm), achieving cross-domain high-precision dynamic integration.
Description
- Single slot adaptive design.
- Flexible positioning.
- AR=Abrasion Resistance
- CR=Corrosion Resistance
- OR=Oil Resistance
1. About 3D models and technical parameters:
"If you need to obtain, please contact us by email."
2. About price consultation:
"If you need to obtain, please get in touch with us. We will provide the most suitable quotation plan."
