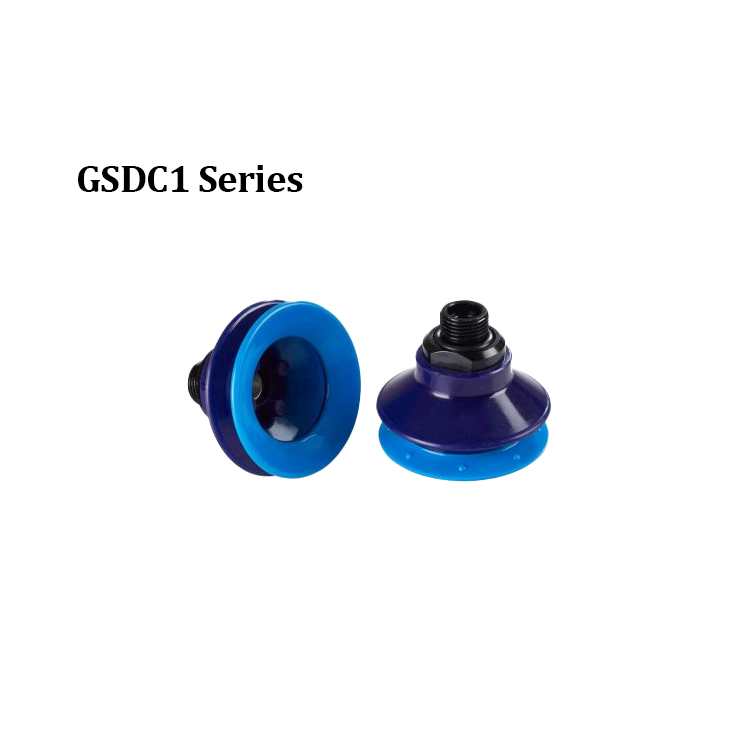

GSDC1--Two-stage Bellows Suction Cup
Materials
- Polyurethane suction cup body
- Nickel-plated brass supports
Implementation standards
- EN ISO 12100:2010
- ISO 13849-1 PL c
- RoHS 2.0
- VDI 2862
- Product Showcase
- 3D Preview
- Description
- Inquiry
- Related Products
Type Characteristics：
Accordion-type suction cups are suitable for workpieces with uneven surfaces or varying heights. These suction cups are ideal for handling fragile workpieces such as electronic components and injection-molded parts. Suction cups with multiple bellows are ideal for handling food packaging and shrink-wrapped products.
It is widely used in 🪓 woodworking for non-destructive handling of plywood, 🔩 plastics processing for non-slip gripping of injection molded parts, and 📦 packaging logistics for palletizing corrugated cardboard at a rate of 1,500 cases per hour. It plays a critical role in handling and gripping in numerous industrial fields.
1. About 3D models and technical parameters:
"If you need to obtain, please contact us by email."
2. About price consultation:
"If you need to obtain, don't hesitate to get in touch with us. We will provide the most suitable quotation plan."
Description
- The response time is fast.
- Stable adsorption performance.
- Two layers of fold-over cushioning.
- AR = Abrasion Resistance
- HR=Heat Resistance
- OR=Oil Resistance
