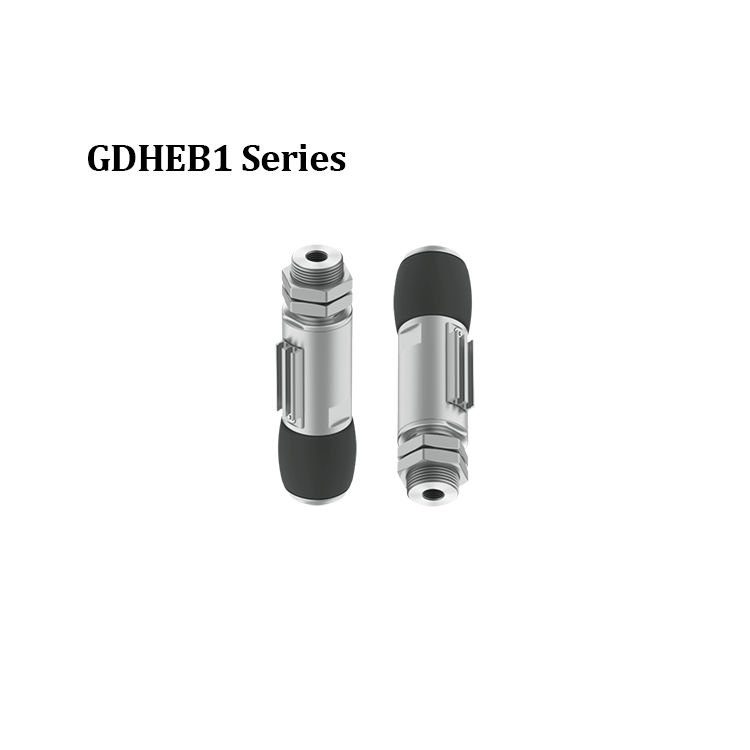

GDHEB1--Expansion fixture

GDHEB1--Expansion fixture

Materials

  • Silicone rubber body material
  • Reinforced nylon fiber layer airbag structure

Implementation standards

  • ISO 9001:2015
  • ISO 1179-1
  • ATEX 2014/34/EU
  • RoHS 3 (EU 2015/863)
  • Sellingpoint
  • Product Show
  • 3D Preview
  • Inquiry
  • Related Products

SOVE

The expansion fixture is specially designed for clamping irregular cavities and thin-walled workpieces. Its multi-stage radial expansion mechanism can adaptively compensate for the ±0.05mm aperture tolerance. The fixture is particularly suitable for clamping precision medical devices and aircraft engine parts, such as turbine blade mortise and tenon, endoscope metal sleeve, and minimally invasive surgical instrument housing, and other complex structures.

It is deeply applied to the intelligent crankcase assembly system in 🚗automobile intelligent manufacturing, the multi-configuration pastry flexible packaging matrix in 🍞food engineering, and the dynamic sorting and fixed loading platform in 📦smart logistics, to build a cross-industry high-precision intelligent manufacturing collaborative hub.

Description

  • Adaptive crawling.
  • Energy buffering design.
  • Modular configuration.
  • AR = Abrasion Resistance
  • CR=Chmeical Resistance
  • HR=Heat Resistance

1. About 3D models and technical parameters:
"If you need to obtain, please contact us by email."

2. About price consultation:
"If you need to obtain, please contact us. We will provide the most suitable quotation plan."
