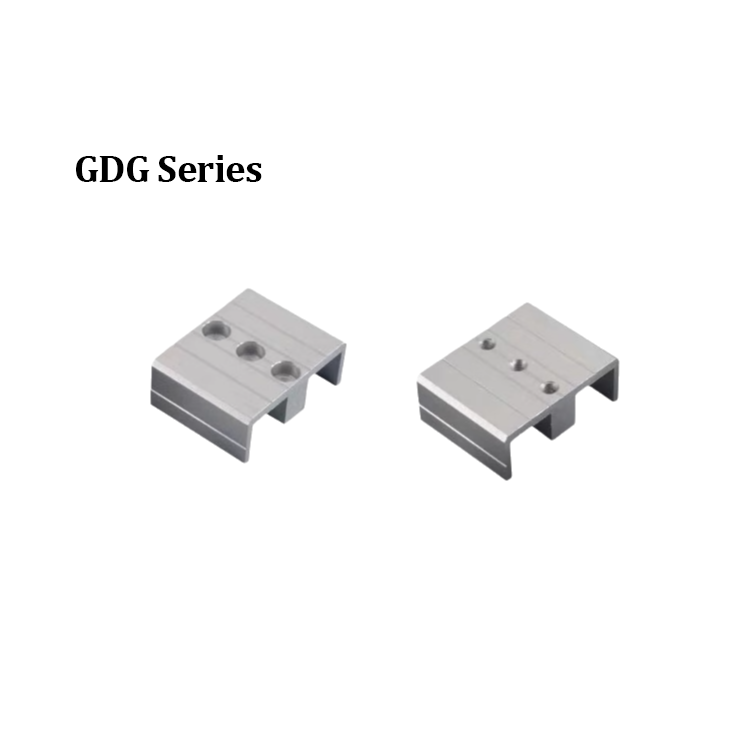

GDG--Double slot fixing block
Materials
- 6082-T6 aluminum alloy substrate
- Hard anodized surface treatment
Implementation standards
- EN 755-2
- ISO 965-1
- ISO 4014
- EN 1998-1
- Sellingpoint
- Product Show
- 3D Preview
- Inquiry
- Related Products
SOVE
The double-groove fixing block is optimized by symmetrical V-groove design, and performs outstandingly in the modular assembly of heavy equipment. Its two-way self-locking mechanism not only realizes stepless adjustment of 10-500kN dynamic clamping force, but is also more suitable for the integrated base of hydraulic valve blocks, large welding positioner turntables, and mining machinery load-bearing frame positioning, especially maintaining a plane coplanarity accuracy of ±0.12mm under a 30-ton impact load.
It is widely used in lightweight vibration-resistant structural systems in 🚀 aerospace (specific stiffness ≥ 25GPa/(g/cm³)), multi-energy connection hubs in 🔋 energy equipment (fatigue life > 10⁷ times), and ultra-heavy load-bearing frames in 🏗️ heavy machinery (ultimate load ≥ 5000kN), achieving a leap in structural reliability under extreme working conditions.
Description
- Anodized layer isolation.
- Synchronously fix two profile grooves.
- AR=Abrasion Resistance
- CR=Corrosion Resistance
- OR=Oil Resistance
1. About 3D models and technical parameters:
"If you need to obtain, please contact us by email."
2. About price consultation:
"If you need to obtain, please get in touch with us. We will provide the most suitable quotation plan."
