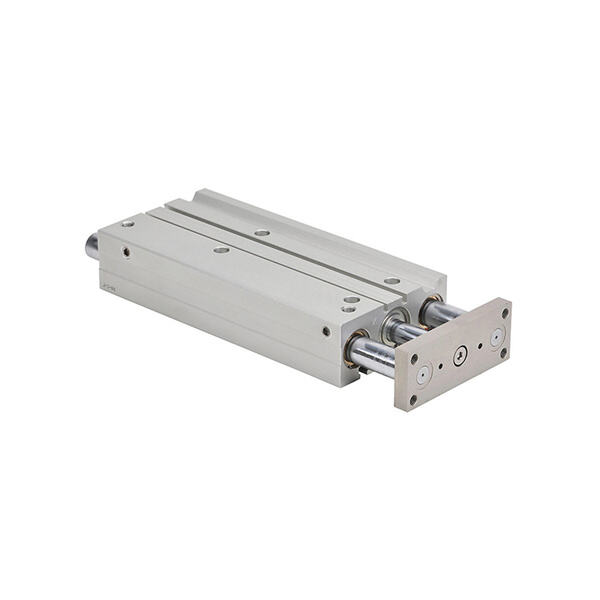

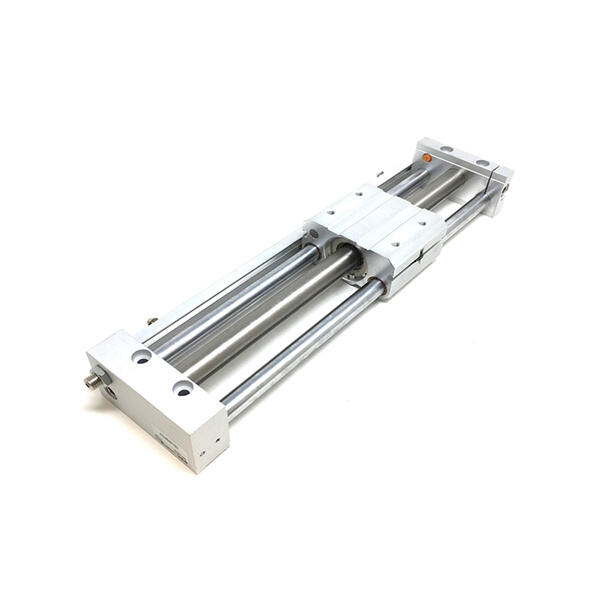

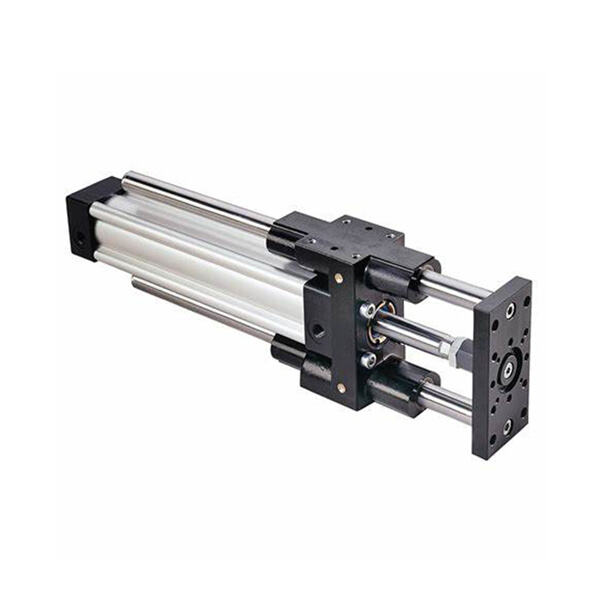

Cylinders with guide rods

They are fascinating devices which assist up and down transfer via guiding rods. The guide rods are within the cylinders and help them operate correctly and smoothly. How do they work and why is it important when designing cylinders?

The Pneumatic piston rod cylinder by SOVE uses a piston in a tube to generate movement. The guide rods help the piston stay in the correct position, preventing wobbling or sticking. That allows the cylinder to move up and down smoothly and accurately. You can think of the guide rods as the strong legs of the table supporting and stabilizing the cylinder.

Benefits of using guide rods in cylinder design

Guide rods is used in the cylinder design having several advantages. One key benefit is that they increase the accuracy of the cylinder’s movements. Meaning, the cylinder can be for applications requiring fine control; such as factories or robotics. The prevention of cylinder damage provides an additional benefit—the cylinder will last longer, saving money over the long run.

Guide rods with different variants can also be used in the cylinder design. The guide rod is sometimes composed of very durable stainless steel. Others are constructed of aluminum or plastic, which are lighter and resist rust. The type of guide rod simply depends on what is required for the cylinder and the environment of use. SOVE has a variety of guide rods for different applications to guarantee our cylinders function properly.

Why choose SOVE Cylinders with guide rods?
